Network specifications and connection paths

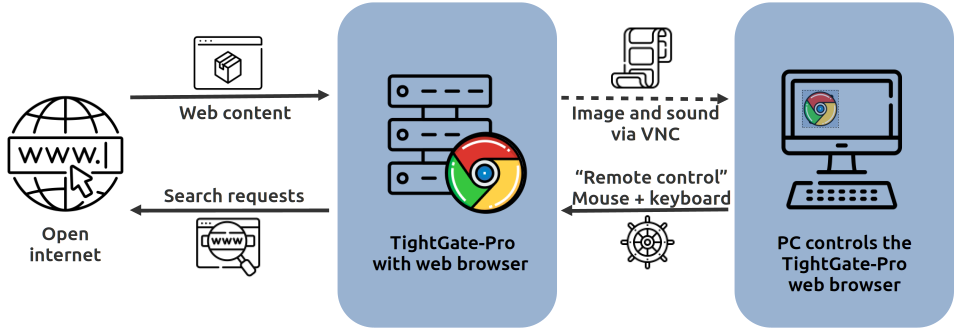

The following overview shows the ports and protocols that are required for TightGate-Pro to be operated in the network. The internal firewall (packet filter or layer 3 switch) shown must be provided by the operator.
Firewall settings
TightGate-Pro is generally intended for operation in a demilitarised zone (DMZ). It must be ensured that client computers in the internal network only connect to TightGate-Pro via the designated ports. Furthermore, direct Internet access by bypassing TightGate-Pro must be prevented using suitable firewalls or packet filters.
Connection paths that are not absolutely necessary for the proper operation of TightGate-Pro are marked as "optional" and should be deactivated if the functionality realised via them is not required.
Outgoing connections
For UDP connections, associated UDP response packets in the opposite direction must also be enabled.
| Sender | Destination | Protocol | Port(s) | Remark | Optional |
|---|---|---|---|---|---|
| TightGate-Pro | Internet | TCP | 80, 443 or specific proxy port | Access for HTTP(S) connections to the Internet. If a proxy is connected upstream, the connection to the proxy must be enabled. | |
| TightGate-Pro | m-privacy Update server TCP 22 or 443 or proxy SSH access via port 443 or 22 to update server of | m-privacy GmbH Attention: See also the configuration settings for the update. | |||
| TightGate-Pro | Internet | UDP | 80, 443, 1024:65535 | Requests from WebRTC services such as Webex or Zoom. Webmeeting services may require additional network shares. These may vary depending on the application. | X |
| TightGate-Pro | specific | UDP | 123 | Requests to time servers | X |
| TightGate-Pro | specific | TCP + UDP | 53 | Requests to name servers | X |
| TightGate-Pro | specific | TCP | 25 | Further authorisations required if e-mail services are to be used via TightGate-Pro: POP3: 110 - POP3/SSL: 995 IMAP4: 143 - IMAP4/SSL: 993 | X |
| TightGate-Pro | specific | TCP + UDP | 88 | Communication with Active Directory | X |
| TightGate-Pro | specific | TCP | 389,636 3268,3269 | Communication with Active Directory (LDAP / LDAPS) Queries to determine a global catalogue | X |
| TightGate-Pro | specific | TCP | 21, 22 | Direct access to server via FTP, SFTP/SSH | X |
| TightGate-Pro | specific | TCP + UDP | 514, 2514, 3514 | Configurable ports for sending syslog messages to central syslog servers . for sending syslog messages to central syslog servers. (Syslog / RELP / RELPTLS) | X |
| TightGate-Pro | specific | TCP UDP | 3389, 1494, 80, 443 1604 | RDP or CITRIX server incoming and outgoing | X |
Incoming connections (LAN)
| Originator | Destination | Protocol | Port(s) | Remark | Optional |
|---|---|---|---|---|---|
| Clients (workstation PC) | TightGate-Pro | TCP | 5900 | TLS-encrypted connection of the TightGate-Viewers to TightGate-Pro. | |
| Clients (workstation PC) | TightGate-Pro | TCP | 22 | SFTP-encrypted connection to use the file lock of TightGate-Pro. | X |
| Administration network | TightGate-Pro | TCP | 222 2222 22222 | SSH access for the administration of TightGate-Pro. One of the ports can be set. If none of the ports is selected, administrative access is via port 22. | X |
Incoming connections (DMZ/Internet)
| Sender | Destination | Protocol | Port(s) | Remark | Optional |
|---|---|---|---|---|---|
| Internal DNS service | TightGate-Pro Cluster system | UDP TCP | 53 | These ports are only to be released if a TightGate-Pro cluster is used. For responses that exceed the packet size of UDP, TCP port 53 must be released. | X |
| Monitoring with SNMP | TightGate-Pro | UDP | 161 | SNMP requests | X |
| Monitoring with NRPE | TightGate-Pro | TCP | 5666 | Access from ZenTiV or other NRPE-based monitoring systems | X |
